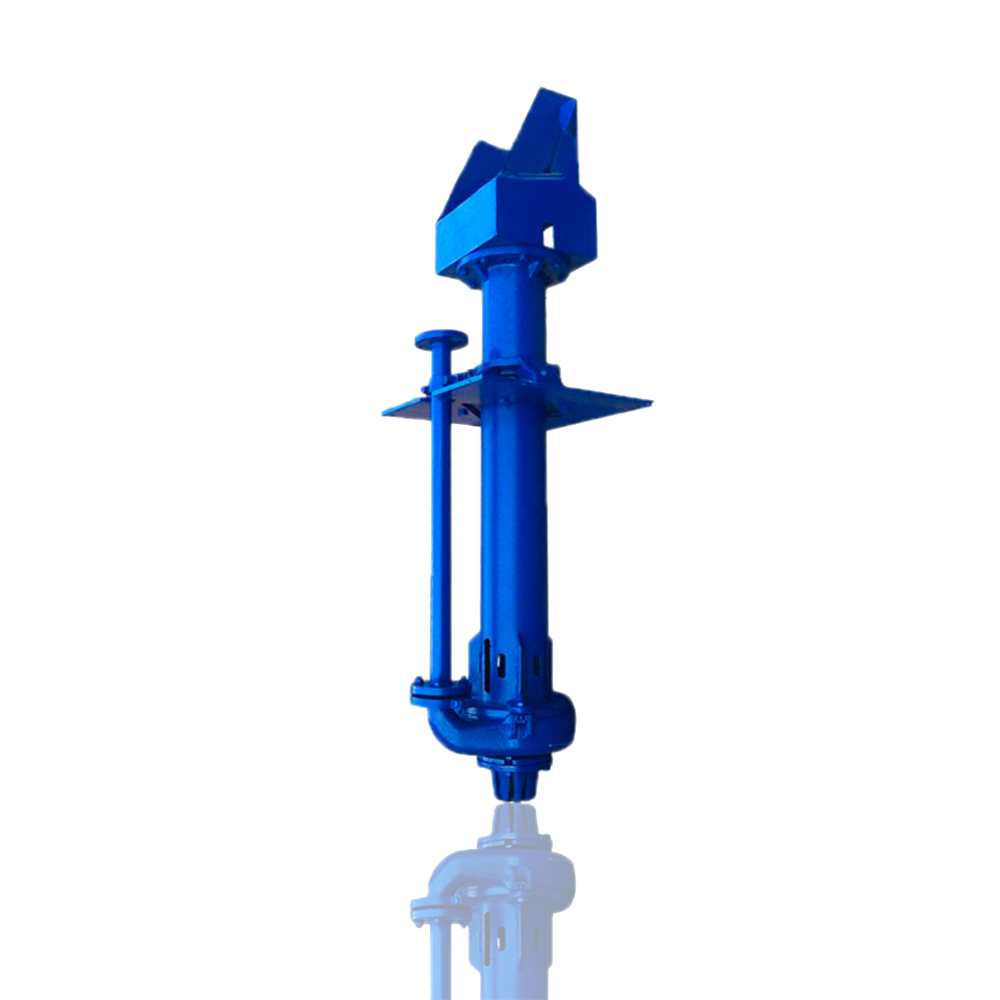

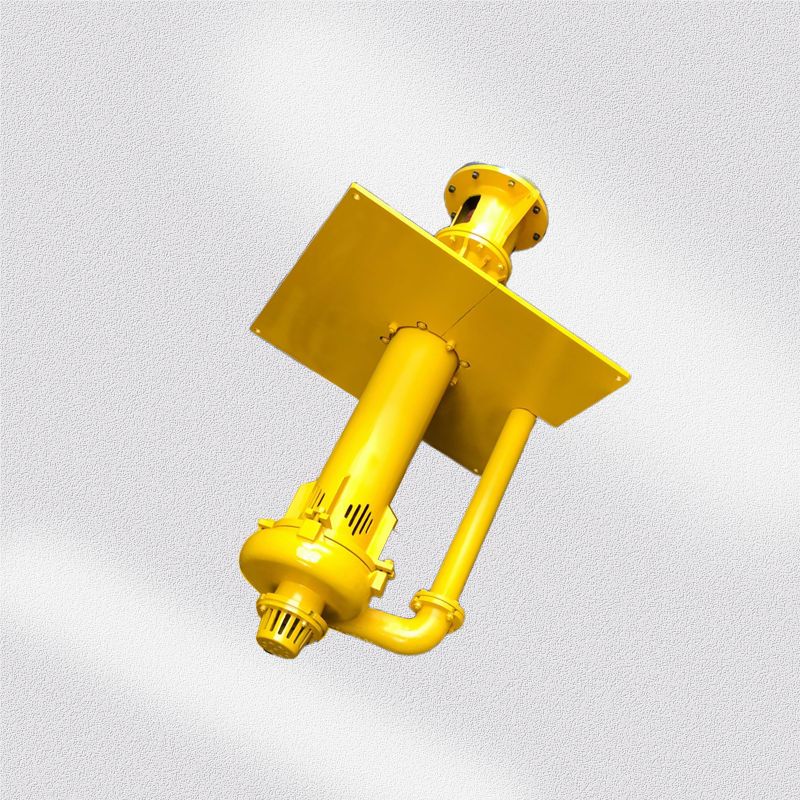

ZJL- Vertical Slurry Pumps

Model: ZJL Head: 2.5-49.3m Size: 40mm - 150 mm Capacity: 4-480 m3/h Power:4-110 kw
  • ZJL- Vertical Slurry Pumps
  • Vertical Slurry Pumps
  • Vertical Slurry Pumps
  • Vertical Slurry Pumps
SPECIFICATION

ZJL series vertical slurry pump is a single-stage, single-suction, vertical centrifugal slurry pump. This series of pumps adopts the international advanced solid-liquid two-phase flow theory and is designed according to the principle of minimum loss. The geometric shape of its flow-passing parts conforms to the flow state of the medium, thereby reducing the wear of the flow-passing parts, improving hydraulic efficiency, and reducing operating noise and vibration. The wetted parts are made of high-hard alloy cast iron, which has high wear resistance, corrosion resistance and impact resistance, so as to improve the service life.

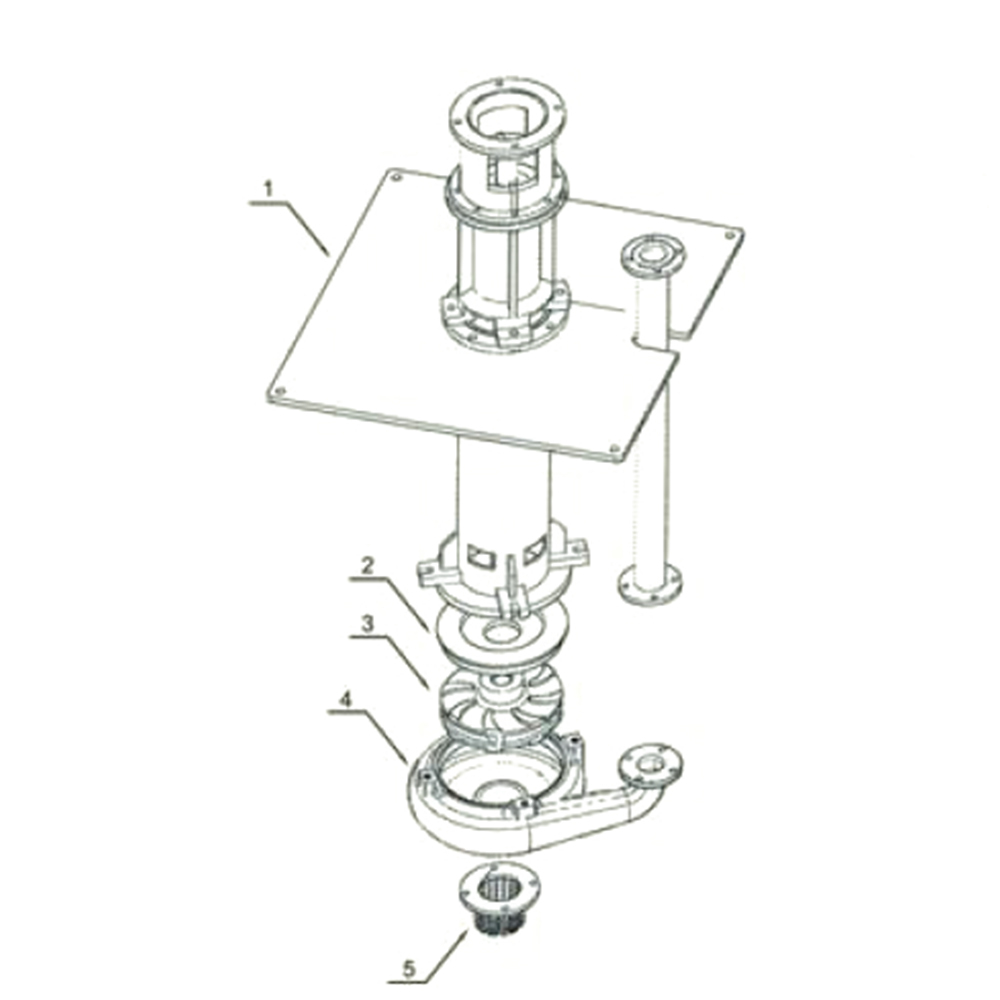

Main Parts:

Support plate, Impeller, Pump body, Rear guard plate, Filter screen, etc.


Main material:

Cr27,Cr28, Rubber, etc.



Advantage:

1. No need for any shaft seal and shaft seal water;

2. It is suitable for mining, metallurgy, electric power, coal, chemical industry, building materials and other industries, transporting abrasive slurry containing solid particles, the maximum weight concentration of solid-liquid mixture: mortar 45%, ore slurry 60%;

3. The extended type of this series can reach a depth of about 5 meters under the armpit. Due to the mechanical seal structure, the slurry will not enter the bearing.

Specifications and Performance




Type


Speed n

Capacity
Q

Head
H

Power of Shaft Pa

Eff
η

r/min

m3 /h

m

KW

%

150ZJL-A35

980

198

17.9

15.3

15.3

332

13.2

17.5

17.5

364

12.1

18.0

18.0

730

147

10.0

6.3

6.3

247

7.3

7.2

7,2

271

6.7

7.4

7.4

590

119

6.5

3.3

3.3

200

4.8

3.8

3.8

219

4.4

3.9

3.9

100ZLJ-A34

1 480

157

36.8

26.1

26.1

214

32.6

29.2

29.2

293

24.4

33.5

33.5

970

103

15.8

7.4

7.4

140

14.0

8.2

8.2

192

10.5

9.4

9.4

80ZJL-A36

1 480

105

45.5

25.0

25.0

144

41.4

27.9

27.9

201

32.5

32.8

32.8

970

69

19.5

7.0

7.0

94

17.8

7.8

7.8

132

14.0

9.3

9.3

65ZJL-A30

1470

38

34.7

8.2

8.2

58

31.9

9.7

9.7

98

26.0

13.4

13.4

960

25

14.8

2.3

2.3

38

13.6

2.7

2.7

64

11.1

3.7

3.7

50ZJL- -B40

1470

31

58.3

16.5

16.5

47

51.0

19.1

19.1

65

37.9

22.1

22.1

970

21

25.4

4,9

4.9

31

22.2

5.5

5.5

43

16.5

6.4

6.4

50ZJL-A35

1470

39

47.1

11.9

11.9

64

40.9

14.8

14.8

86

32.2

17.5

17.5

970

26

20.5

3.4

3.4

42

17.8

4.2

4.2

57

14.0

5.0

5.0

50ZJL-A20

1 440

17.1

10.7

1.4

34.9

24,7

9.2

1.6

38.6

38.0

6.0

2.0

31.2

910

10.8

4.3

0.4

34.9

15.6

3.7

0.4

38.6

24.0

2.4

0.5

31.2

50ZJL-A20J

2950

37

46.2

16.9

27.6

56

38.3

17.3

33.8

70

24.3

18.0

25.8

1440

18

11.0

2.0

27.6

28

9.1

2.1

33.8

34

5.8

2.1

25.6

40ZJL-A35

1470

19.7

48.0

8.8

29.2

39.4

41.7

11.6

38.7

47.6

35.8

12.6

36.7

960

12.9

20.5

2.5

29.2

25.7

17.8

3.2

38.7

31.1

15.3

3.5

36.7

40ZJL-B25

1440

10.1

21.5

2.3

26.1

18.4

19.0

2.6

36.6

22.9

16.8

2.8

37.6

940

6.6

9.2

0.6

26.1

12.0

8.1

0.7

36. 6

14.9

7.2

0.8

37.6

40ZJL-A21

1440

9.5

17.0

1.6

27.9

20.3

15.3

2.0

42.4

25.9

14.1

2.2

44.6

910

6.0

6.8

0.4

27.9

12.8

6.1

0.5

42.4

16.4

5.6

0.6

44.6

NoteFor detailed selection of flow rate, head, specific gravity, and equipped power, please consult us.
